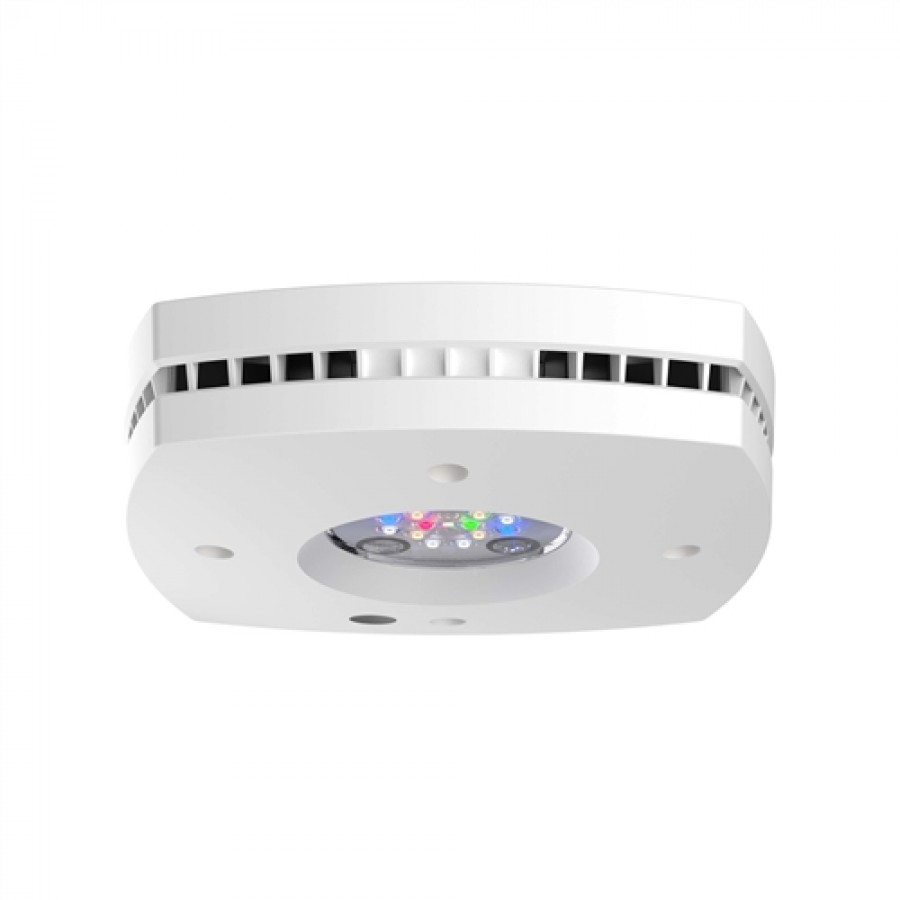

Aqua Illumination Prime 16HD White

No longer are you limited to using a fixed amount of power per channel, the Prime 16HD dynamically adjusts power available to each color, borrowing power from the colors you’re not utilizing. Giving you the most vivid spectrum your tank has ever seen.

The Prime 16 HD Series is capable of producing a limitless number of spectral combinations to fit your tank’s exacting needs.

A dedicated moonlight channel simulates natural lunar color and intensity.

All AI devices include smart control standard. Use the myAI® app on any iOS or Android device to easily set up or program your AI equipment.

Power Output

With a spread of 24″ x 24″, the AI Prime® 16HD has a peak PAR of 100µMol at a depth of 24 inches, perfect for the small to medium reef tank. Drawing a maximum of 55 watts from the wall, it follows in the family’s efficient footsteps.

Optics

The AI Prime® 16HD comes standard with TIR lenses giving you the best balance of power and spread. Our lens optics are custom designed, boasting greater than 90% optical efficiency and including a diffuse exit surface to provide improved color blending.

LEDs

The AI Prime® 16HD utilizes the latest LED technology from leading manufacturers, arranged to provide the best performance.

4 – Cool White
4 – Blue
4 – Royal Blue
1 – Photo Red
1 – Green
1 – Violet
1 – UV
1 – Moonlight

Dimensions
Length 4.88in. (12.4cm)
Width 4.88in. (12.4cm)
Height 1.34in. (3.4cm)
Weight 0.95lbs. (0.43kg)

Power Specifications
Power Consumption 59W at full power
Universal Input Range 100 to 240VAC / 50-60Hz
Cable Length 20ft. (6.1m)
PSU Regulatory UL, CE & RoHS
Compliance
